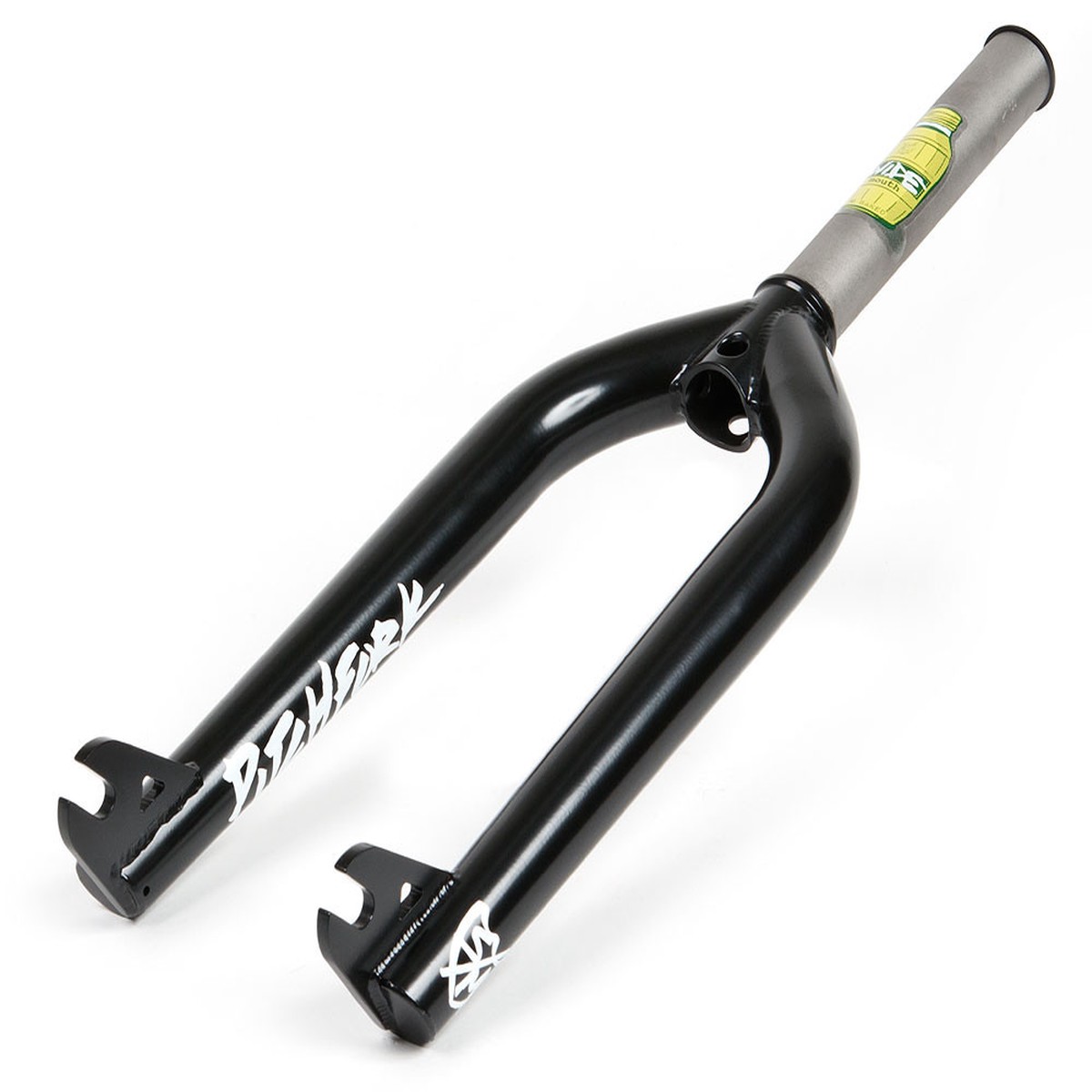

S&M Widemouth Pitch Forks

S&M Wide Mouth Fork BMX 33 degrees Offset
The S&M Wide Mouth Fork is specifically designed to accomdate the wider BMX Freestyle tiresAllows clearance for wider front tires like up to 20 x 4.0. The Pitchfork XLT goes up to 2.3 wide tires. The Original Pitch fork is for up to 2.25 tires.Black or Chrome 20″ x 1 1/8″ Threadless or 22″ x 1 1/8″The 172mm steerer tube length allows for raising your stem up a little higher than normal by using additional headset Stack Spacers.
Description for the 20″
Note: This is the standard 33mm Offset fork. We also have 26mm black and 22inch black in this BMX Freestyle Fork

LEGS
Double Butted, Tapered, 4130 CrMo

DROPOUTS
Laser Cut 3/8″ Slot

STEERER TUBE
Integrated Race,1 Piece CNC-Machined 4130 CrMo, Extruded 6061 Steerer Tube Insert

STEERER TUBE LENGTH
173mm

COMPRESSION
M24 X 1.5 Thread – 6mm Allen Slot

AXLE TO CROWN HEIGHT
320

OFFSET
33mm

WEIGHT
1.99 lb (.90 kg)

HEAT TREAT
4Q Baked Post-Weld
